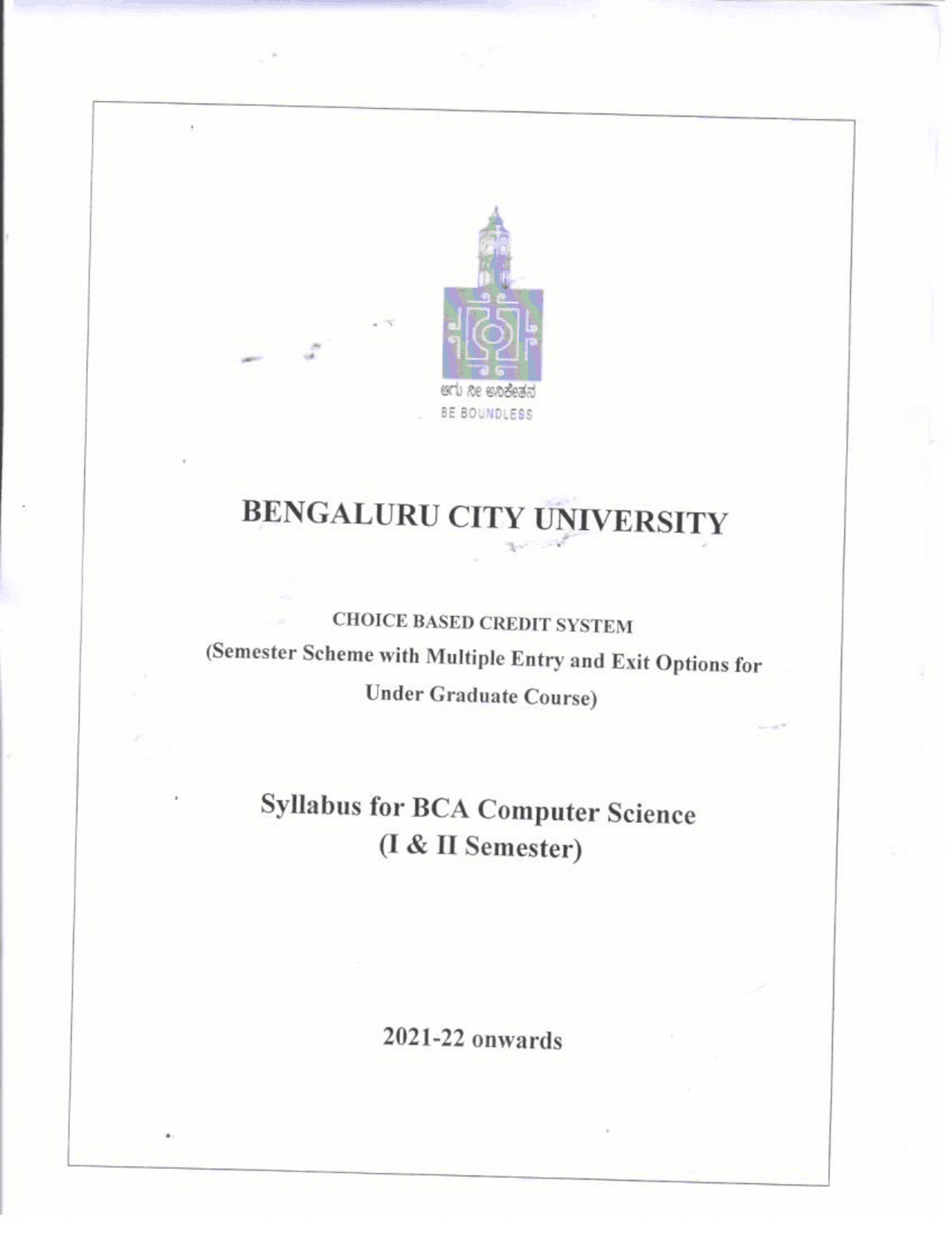

BANGALORE CITY UNIVERSITY

BCA SYLLABUS (NEP)

[Based on I-C. Model of Karnataka State Higher Education Council] Semest er Course Code Title of the Paper Credits Languages, Skill Enhancement (SEC), and Ability Enhancement Courses (AECC) Credits Total Credits I CA-C1T Discrete Structure 3 OE1: Open Elective 3 26 CA-C2T Problem solving Techniques 3 Language L1 3 CA-C3T Data Structure 3 Language L2 3 CA-C4L Problem solving Lab 2 SEC I : Office Management Tools 2 CA-C5L Data Structure Lab 2 Physical Education 1 Health & Willingness 1 II CA-C6T Computer Architecture 3 OE2: Open Elective 3 26 CA-C7T Object Oriented Programming using Java 3 Language L1 3 CA-C8T Database Management System 3 Language L2 3 CA-C9L Java Lab 2 Environmental Science 2 CA-C10L Database Management System Lab 2 Physical Education 1 NCC/NSS/CL/R&R 1 III CA-C11T Operating Systems 3 OE3: Open Elective 3 26 CA-C12T Computer Networks 3 Language L1 3 CA-C13T Python Programming 3 Language L2 3 CA-C14L Computer Networks Lab 2 SEC II : Computer Assembly and Repair 2 CA-C15L Python Programming Lab 2 Physical Education 1 NCC/NSS/CL/R&R 1 IV CA-C16T Software Engineering 3 OE4: Open Elective 3 26 CA-C17T Artificial Intelligence 3 Language L1 3 CA-C18T Internet Technologies 3 Language L2 3 CA-C19L Artificial Intelligence Lab 2 The Constitution of India 2 CA-C20L Internet Technologies Lab 2 Physical Education 1 NCC/NSS/CL/R&R 1 V CA-C21T Design and Analysis of Algorithm 3 CA-V1 Vocation Course I : Quantitative Techniques 3 23 CA-C22T Data Analytics 3 CA-E1 Elective I : a. Data Mining b. Computer Graphics 3 CA-C23T Web Programming 3 SEC III : Cyber Crime, Cyber Law, and Intellectual Property Right 2 CA-C24L Data Analytics Lab 2 Physical Education 1 CA-C25L Web Programming Lab 2 NCC/NSS/CL/R&R 1

Semest er Course Code Title of the Paper Credits (^) Languages, Skill Enhancement (SEC), and Ability Enhancement Courses (AECC) Credits (^) Total Credits VI CA-C26T Theory of Computation 3 CA-V2 Vocation Course II : Electronic Content Design 3 23 CA-C27T Machine Learning (^3) CA-E2 Elective II : a. Operations Research b. Software Testing 3 CA-C28T Mobile Application Development 3 Professional Communication 2 CA-C29L Machine Learning Lab 2 Physical Education 1 CA-C30L Mobile Application Development Lab 2 NCC/NSS/CL/R&R 1 VII (^) CA-C31T Cloud Computing 3 CA-V3 Vocation Course III : Technical Writing 3 21 CA-C32T Internet of Things 3 CA-E3 Elective III : a. Modeling and Simulation b. Compiler Design 3 CA-C33T Internship 2 Research Methodology 3 CA-C34L Cloud Computing Lab 2 CA-C35L Internet of Things Lab 2 VIII CA-C36T Block Chain Technologies 3 CA-V4 Vocation Course IV : Project Management 3 20 CA-C37T Cryptography and System Security 3 CA-E4 Elective IV : a. Human Computer Interface b. Parallel Algorithms 3 CA-C38T Block Chain Technologies Lab 2 Research Project 6

CA-C2T: PROBLEM SOLVING TECHNIQUES

Total Teaching Hours: 48 No. of Hours / Week: 03 UNIT - I [12 Hours] Introduction: The Role of Algorithms in Computing, Algorithms as a technology, Analyzing algorithms, Designing algorithms, Growth of Functions, Asymptotic notation, Standard notations and common functions. Fundamental Algorithms: Exchanging the values of two variables, Counting, Summation of a set of numbers, Factorial Computation, Generating of the Fibonacci sequence, Reversing the digits of an integer, Character to number conversion. UNIT - II [12 Hours] C Programming: Getting Started, Variables and Arithmetic expressions. Input and Output: Standard input and output, formatted output- printf, variable length argument list, formatted input-scanf. Control Flow: Statements and Blocks, If-else, else-if, switch, loops: while loop, for loop, do while, break and continue, goto and labels. Pointers and Arrays: pointers and address, pointers and function arguments, multidimensional array, initialization of pointer arrays, command line arguments. UNIT - III [12 Hours] Factoring Methods: Finding the square root of a number, the smallest Divisor of an integer, the greatest common divisor of two integers, computing the prime factors of an integer, generation of pseudo random numbers, raising a number to a large power. Array Techniques: Array order Reversal, Array counting or Histogramming, Finding the maximum number in a set, removal of duplicates from an ordered array, partitioning an array, Finding the kth smallest element, multiplication of two matrices. UNIT - IV [12 Hours] Merging: the two-way merge. Sorting: Sorting by selection, sorting by exchange, sorting by insertion, sorting by diminishing increment, sorting by partitioning. Searching: binary search, hash search. Text processing and Pattern searching: text line length adjustment, keyword searching in text, text line editing, linear pattern search Text Books:

1. R.G.Dromey, “How to Solve it by Computer”, Pearson Education India, 2008.
2. Thomas H. Cormen, Charles E. Leiserson, Ronald L. Rivest, Clifford Stein, “Introduction to Algorithms”, 3rd^ Edition, The MIT Press Cambridge, Massachusetts London, England, 2008
3. Brain M. Kernighan, and Dennis M. Ritchie, “The C Programming Language”, 2nd^ edition, Princeton Hall Software Series, 2012. Reference Books:
4. Steven S. Skiena, “The Algorithm Design Module”, 2nd Edition, Springer-Verlag London Limited, 2008.
5. Donald E. Knuth, The Art of Computer Programming”, Volume 1: Fundamental Algorithms, 3rd^ Edition, Addison Wesley Longman, 1997.
6. Donald E. Knuth, The Art of Computer Programming”, Volume 2: Seminumerical Algorithms, 3rd Edition, Addison Wesley Longman, 1998.
7. Greg Perry and Dean Miller, “C programming Absolute Beginner’s Guide”, 3rd^ edition, Pearson Education, Inc, 2014. Web Resources:
8. http://algorithmsforinterviews.com “Algorithms for Interviews”

CA-C3T: DATA STRUCTURES

Total Teaching Hours: 48 No. of Hours / Week: 03 UNIT-I [12 Hours] Introduction and Overview: Definition, Elementary data organization, Data Structures, data Structures operations, Abstract data types, algorithms complexity, time-space trade off. Preliminaries: Mathematical notations and functions, Algorithmic notations, control structures, Complexity of algorithms, asymptotic notations for complexity of algorithms. Arrays: Definition, Linear arrays, arrays as ADT, Representation of Linear Arrays in Memory,Traversing Linear arrays, Inserting and deleting, Multi-dimensional arrays, Matrices and Sparse matrices. UNIT-II [12 Hours] Linked list: Definition, Representation of Singly Linked List in memory,Traversing a Singly linked list, Searching in a Singly linked list, Memory allocation, Garbage collection, Insertion into a singly linked list, Deletion from a singly linked list; Doubly linked list, Header linked list, Circular linked list. Stacks: Definition, Array representation of stacks, Linked representation of stacks, Stack as ADT, Arithmetic Expressions: Polish Notation, Conversion of infix expression to postfix expression, Evaluation of Post fix expression, Application of Stacks, Recursion, Towers of Hanoi, Implementation of recursive procedures by stack. Queues: Definition, Array representation of queue, Linked list representation of queues. Types of queue: Simple queue, Circular queue, Double-ended queue, Priority queue, Operations on Queues, Applications of queues. UNIT-III [12 Hours] Binary Trees: Definitions, Tree Search, Traversal of Binary Tree, Tree Sort, Building a Binary Search Tree, Height Balance: AVL Trees, Contiguous Representation of Binary Trees: Heaps, Lexicographic Search Trees: Tries, External Searching: B-Trees, Applications of Trees. Graphs: Mathematical Back ground, Computer Representation, Graph Traversal, Topological Sorting UNIT-IV [12 Hours] Searching: Introduction and Notation, Sequential Search, Binary Search, Comparison of Methods. Sorting: Introduction and Notation, Insertion Sort, Selection Sort, Shell Sort, Divide And Conquer, Merge sort for Linked List, Quick sort for Contiguous List. Hashing: Sparse Tables, Choosing a Hash function, Collision Resolution with Open Addressing, Collision Resolution by Chaining. Text Books:

1. Seymour Lipschutz, “Data Structures with C”, Schaum’s out Lines, Tata Mc Graw Hill, 2011.
2. Robert Kruse, C.L.Tondo, Bruce Leung,Shashi Mogalla,“Data Structures and Program Design using C”, Pearson Education, 2009. ReferenceBooks:
3. Mark Allen Weiss,“ Data Structures and Algorithm Analysis in C”, Second Edition, Pearson Education,
4. Forouzan,“A Structured Programming Approach using C”,2nd^ Edition, Cengage LearningIndia,2008.

CA-C5P: DATA STRUCTURES LAB

NOTE: For all the programs write the output, flowchart and number of basic operations performed.

1. Given {4,7,3,2,1,7,9,0} find the location of 7 using Linear and Binary search and also display its first occurrence.
2. Given {5,3,1,6,0,2,4} order the numbers in ascending order using Bubble Sort Algorithm
3. Perform the Insertion and Selection Sort on the input {75,8,1,16,48,3,7,0} and display the output in descending order.
4. Write a program to insert the elements {61,16,8,27} into singly linked list and delete 8,61,27 from the list. Display your list after each insertion and deletion.
5. Write a program to insert the elements {61,16,8,27} into linear queue and delete three elements from the list. Display your list after each insertion and deletion.
6. Write a program to insert the elements {61,16,8,27} into circular queue and delete 4 elements from the list. Display your list after each insertion and deletion.
7. Write a program to insert the elements {61,16,8,27} into ordered singly linked list and delete 8,61, from the list. Display your list after each insertion and deletion.
8. Write a program to add 6x^3 +10x^2 +0x+5 and 4x^2 +2x+1 using linked list.
9. Write a program to push 5,9,34,17,32 into stack and pop 3 times from the stack, also display the popped numbers.
10. Write a recursive program to find GCD of 4,6,8.
11. Write a program to inert the elements {5,7,0,6,3,9} into circular queue and delete 6,9&5 from it(using linked list implementation)..
12. Write a program to convert an infix expression x^y/(5*z)+2 to its postfix expression
13. Write a program to evaluate a postfix expression 5 3+8 2 - *.
14. Write a program to create a binary tree with the elements {18,15,40,50,30,17,41} after creation insert 45 and 19 into tree and delete 15,17 and 41 from tree. Display the tree on each insertion and deletion operation
15. Write a program to create binary search tree with the elements {2,5,1,3,9,0,6} and perform inorder, preorder and post order traversal.
16. Write a program to Sort the following elements using heap sort {9.16,32,8,4,1,5,8,0}
17. Given S1={“Flowers”} ; S2={“are beautiful”} I. Find the length of S1 II. Concatenate S1 and S2 III. Extract the substring “low” from S1 IV. Find “are” in S2 and replace it with “is”

CA-C6T: COMPUTER ARCHITECTURE

Total Teaching Hours: 48 No. of Hours / Week: 03 UNIT - I [12 Hours] Number Systems: Binary, Octal, Hexa decimal numbers, base conversion, addition, subtraction of binary numbers, one's and two's complements, positive and negative numbers, character codes ASCII, EBCDIC. Computer Arithmetic: Addition and Subtraction, Multiplication and Division algorithms, Floating-point Arithmetic Operations, Decimal arithmetic operations. Structure of Computers: Computer types, Functional units, Basic operational concepts, Von-Neumann Architecture, Bus Structures, Software, Performance, Multiprocessors and Multicomputer, Digital Logic Circuits: Logic gates, Boolean algebra, M a p S i m p l i f i c a t i o n. C o m b i n a t i o n a l C i r c u i t s : H a l f A d d e r , F u l l A d d e r , f l i p flops.Sequentialcircuits:Shiftregisters,Counters,IntegratedCircuits,Mux,Demux,Encoder,Decoder.Data representation: Fixed and Floating point. UNIT - II [12 Hours] Basic Computer Organization and Design: Instruction codes, Computer Registers, Computer Instructions and Instruction cycle. Timing and Control, Memory-Reference Instructions, Input-Output and interrupt. Central processing unit: Stack organization, Instruction Formats, Addressing Modes, Data Transfer and Manipulation, Complex Instruction Set Computer (CISC) Reduced Instruction Set Computer (RISC), CISC vs RISC UNIT - III [12 Hours] Register Transfer and Micro-operations: Register Transfer Language, Register Transfer, Bus and Memory Transfers, Arithmetic Micro-Operations, Logic Micro-Operations, Shift Micro-Operations, Arithmetic logic shift unit. Micro-programmed Control: Control Memory, Address Sequencing, Micro-Program example, Design of Control Unit. Input Output: I/O interface, Programmed IO, Memory Mapped IO, Interrupt Driven IO, DMA. Instruction level parallelism: Instruction level parallelism (ILP)-over coming data hazards, limitations of ILP UNIT - IV [12 Hours] Memory System: Memory Hierarchy, Semiconductor Memories, RAM(Random Access Memory), Read Only Memory (ROM), Types of ROM, Cache Memory, Performance considerations, Virtual memory, Paging, Secondary Storage, RAID. Multiprocessors And Thread level Parallelism: Characteristics of multiprocessors, Multi-Threaded Architecture, Distributed Memory MIMD Architectures, Interconnection structures, TEXT BOOKS:

1. Mano M Morris, ”Computer System Architecture”, 3rd edition Pearson India(2019).
2. William Stallings, “Computer Organization and Architecture designing for performance”, 10th edition, Pearson(2016) REFERENCE BOOKS
3. Subrata Ghoshal, “Computer Architecture And Organization”, Pearson India(2011).
4. Andrew S. Tanenbaum “ Structured Computer Organization”, 5th edition, Pearson Education Inc(2006).
5. Carl Hamacher, Zvonks Vranesic,SafeaZaky, “Computer Architecture And Organization”, 5th^ edition McGraw Hill New Delhi,India(2002).
6. Kai Hwang, “Advanced Computer Architecture - Parallelism, Scalability, Programmability”, Tata Mcgraw-Hill (2008).

CA-C8T: DATABASE MANAGEMENT SYSTEMS

Total Teaching Hours: 48 No. of Hours / Week: 03 UNIT - 1 [12 Hours] Databases and Database Users: Introduction, An example, Characteristics of the Database Approach, Actors on the Scene, Workers behind the Scene, Advantages of Using DBMS Approach, A Brief History of Database Applications, When Not to Use a DBMS. Database System Concepts and Architecture: Data Models, Schemas, and Instances, Three-schema Architecture and Data Independence, Database Languages and Interfaces, The Database System Environment, Centralized and Client-Server Architectures, Classification of Database Management Systems. UNIT - 2 [12 Hours] Data Modeling Using Entity-Relationship Model: Using High-Level Conceptual Data Models for Database Design, An Example Database Application, Entity Types, Entity Sets, Attributes and Keys, Relationship Types, Relationship Sets, Roles and Structural Constraints, Weak Entity Types, Refining the ER Design Company Database Diagrams, Naming Conventions and Design. Issues, File organization and storage, secondary storage devices, type of single level ordered index, multi-level indexes, indexes on multiple keys, other types of indexes. UNIT – 3 [12 Hours] Relational Model and Relational Algebra: Relational Model Concepts, Relational Model Constraints and Relational Database Schemas, Update Operations, Transactions and Dealing with Constraint Violations, Unary Relational Operations: SELECT and PROJECT, Relational Algebra Operations from SET Theory, Binary Relational Operations: JOIN and DIVISION, Additional Relational Operations, Examples of Queries in Relational Algebra. Relational Database Design: Anomalies in a database, functional dependency, normal forms, lossless join and dependency, BCNF, normalization through synthesis, higher order normal forms. SQL- SQL Data Definition and Data Types, Specifying Constraints in SQL, Schema Change Statements in SQL, Basic Queries in SQL, More Complex SQL Queries, Insert, Delete and Update Statements in SQL, Specifying Constraints as Assertion and Trigger, Views(Virtual Tables) in SQL, Embedded SQL, Dynamic SQL, UNIT – 4 [12 Hours] Introduction to transaction processing, transaction and system concepts, desirable properties of transactions, transaction support in SQL. Concurrency control techniques: two-phase locking techniques, concurrency control based on timestamp ordering. Recovery techniques: recovery concepts, recovery in multi-database systems, database backup and recovery from catastrophic failures. Text Books:

1. Elmasri and Navathe: Fundamentals of Database Systems, 7th Edition, Addison - Wesley, 2016.
2. Silberschatz, Korth and Sudharshan Data base System Concepts, 7th Edition, Tata McGraw Hill, 2019. References:
3. C.J. Date, A. Kannan, S. Swamynatham: An Introduction to Database Systems, 8th Edition, Pearson education, 2009
4. Database Management Systems :Raghu Ramakrishnan and Johannes Gehrke: , 3rd Edition, McGraw- Hill, 2003

CA-C9P: JAVA PROGRAMMING LAB

1. Write a simple java application, to print the message, “Welcome to java”
2. Write a program to display the month of a year. Months of the year should be held in an array.
3. Write a program to demonstrate a division by zero exception
4. Write a program to create a user defined exception say Pay Out of Bounds..
5. Write a java program to add two integers and two float numbers. When no arguments are supplied, give a default value to calculate the sum. Use function overloading.
6. Write a program to perform mathematical operations. Create a class called AddSub with methods to add and subtract. Create another class called MulDiv that extends from AddSub class to use the member data of the super class. MulDiv should have methods to multiply and divide A main function should access the methods and perform the mathematical operations.
7. Write a program with class variable that is available for all instances of a class. Use static variable declaration. Observe the changes that occur in the object’s member variable values.
8. Write a java program to create a student class with following attributes: Enrollment_id: Name, Mark of sub1, Mark of sub2, mark of sub3, Total Marks. Total of the three marks must be calculated only when the student passes in all three subjects. The pass mark for each subject is 50. If a candidate fails in any one of the subjects his total mark must be declaredas zero. Using this condition write a constructor for this class. Write separate functions for accepting and displaying student details. In the main method create an array of three student objects and display the details.
9. In a college first year class are having the following attributesName of the class (BCA, BCom, BSc), Name of the staff No of the students in the class, Array of students in the class
10. Define a class called first year with above attributes and define a suitable constructor. Also write a method called best Student () which process a first-year object and return the student with the highest total mark. In the main method define a first-year object and find the best student of this class
11. Write a Java program to define a class called employee with the name and date of appointment. Create ten employee objects as an array and sort them as per their date of appointment. ie, print them as per their seniority.
12. Create a package‘ student.Fulltime.BCA‘ in your current working directory a. Create a default class student in the above package with the following attributes: Name, age, sex. b. Have methods for storing as well as displaying
13. Write a small program to catch Negative Array Size Exception. This exception is caused when the array is initialized to negative values.
14. Write a program to handle Null Pointer Exception and use the “finally” method to display a message to the user.
15. Write a program which create and displays a message on the window
16. Write a program to draw several shapes in the created window
17. Write a program to create an applet and draw grid lines
18. Write a program which creates a frame with two buttons father and mother. When we click the father button the name of the father, his age and designation must appear. When we click mother similar details of mother also appear.
19. Create a frame which displays your personal details with respect to a button click
20. Create a simple applet which reveals the personal information of yours.
21. Write a program to move different shapes according to the arrow key pressed.
22. Write a java Program to create a window when we press M or m the window displays Good Morning, A or a the window displays Good After Noon E or e the window displays Good Evening, N or n the window displays Good Night
23. Demonstrate the various mouse handling events using suitable example.
24. Write a program to create menu bar and pull-down menus.

10. For a given set of relation tables perform the following: Creating Views (with and without check option), Dropping views, Selecting from a view PART B Create the following tables with properly specifying Primary keys, Foreign keys and solve the following queries. BRANCH (Branchid, Branchname, HOD) STUDENT (USN, Name, Address, Branchid, sem) BOOK (Bookid, Bookname, Authorid, Publisher, Branchid) AUTHOR (Authorid, Authorname, Country, age) BORROW (USN, Bookid, Borrowed_Date)
11. Perform the following: a. Viewing all databases, Creating a Database, Viewing all Tables in a Database, Creating Tables (With and Without Constraints), Inserting/Updating/Deleting Records in a Table, Saving (Commit) and Undoing (rollback) Execute the following Queries:
12. a. List the details of Students who are all studying in 2nd sem BCA. b. List the students who are not borrowed any books.
13. a. Display the USN, Student name, Branch_name, Book_name, Author_name, Books_Borrowed_ Date of 2nd sem BCA Students who borrowed books. b. Display the number of books written by each Author.
14. a. Display the student details who borrowed more than two books. b.Display the student details who borrowed books of more than one Author.
15. a. Display the Book names in descending order of their names. b. List the details of students who borrowed the books which are all published by the same publisher. Consider the following schema: STUDENT (USN, name, date_of_birth, branch, mark1, mark2, mark3, total, GPA)
16. Perform the following: a. Creating Tables (With and Without Constraints), Inserting/Updating/Deleting Records in a Table, Saving (Commit) and Undoing (rollback)
17. Execute the following queries: a. Find the GPA score of all the students. b. Find the students who born on a particular year of birth from the date_of_birth column.
18. a. List the students who are studying in a particular branch of study. b. Find the maximum GPA score of the student branch-wise.
