GUIA DE SOLUBILIDADE - Guia de solubilidade para plasticos

140

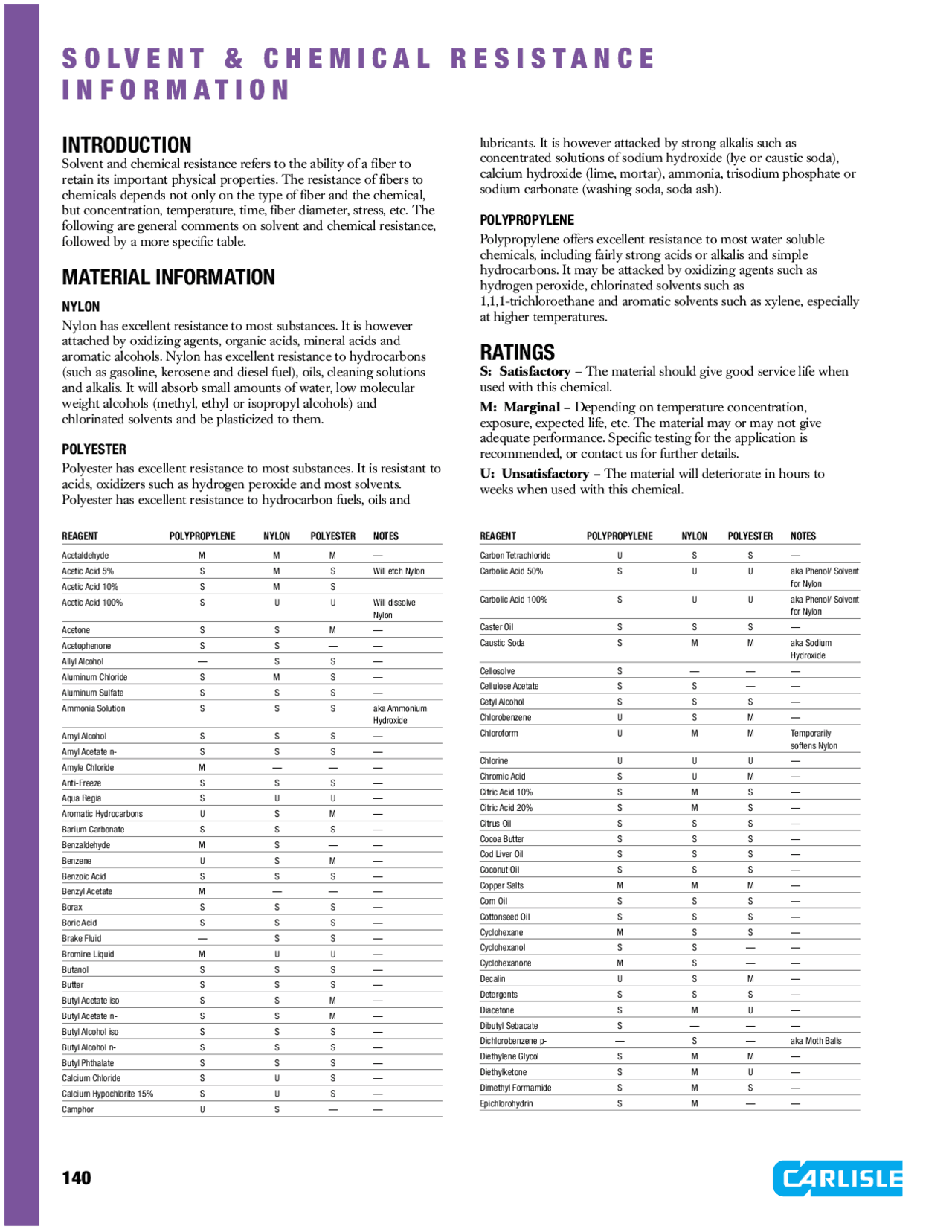

S O L V E N T & C H E M I C A L R E S I S T A N C E

I N F O R M A T I O N

REAGENT POLYPROPYLENE NYLON POLYESTER NOTES REAGENT POLYPROPYLENE NYLON POLYESTER NOTES

Acetaldehyde M M M —

Acetic Acid 5% S M S Will etch Nylon

Acetic Acid 10% S M S

Acetic Acid 100% S U U Will dissolve

Nylon

Acetone S S M —

Acetophenone S S — —

Allyl Alcohol — S S —

Aluminum Chloride S M S —

Aluminum Sulfate S S S —

Ammonia Solution S S S aka Ammonium

Hydroxide

Amyl Alcohol S S S —

Amyl Acetate n- S S S —

Amyle Chloride M — — —

Anti-Freeze S S S —

Aqua Regia S U U —

Aromatic Hydrocarbons U S M —

Barium Carbonate S S S —

Benzaldehyde M S — —

Benzene U S M —

Benzoic Acid S S S —

Benzyl Acetate M — — —

Borax S S S —

Boric Acid S S S —

Brake Fluid — S S —

Bromine Liquid M U U —

Butanol S S S —

Butter S S S —

Butyl Acetate iso S S M —

Butyl Acetate n- S S M —

Butyl Alcohol iso S S S —

Butyl Alcohol n- S S S —

Butyl Phthalate S S S —

Calcium Chloride S U S —

Calcium Hypochlorite 15% S U S —

Camphor U S — —

Carbon Tetrachloride U S S —

Carbolic Acid 50% S U U aka Phenol/ Solvent

for Nylon

Carbolic Acid 100% S U U aka Phenol/ Solvent

for Nylon

Caster Oil S S S —

Caustic Soda S M M aka Sodium

Hydroxide

Cellosolve S — — —

Cellulose Acetate S S — —

Cetyl Alcohol S S S —

Chlorobenzene U S M —

Chloroform U M M Temporarily

softens Nylon

Chlorine U U U —

Chromic Acid S U M —

Citric Acid 10% S M S —

Citric Acid 20% S M S —

Citrus Oil S S S —

Cocoa Butter S S S —

Cod Liver Oil S S S —

Coconut Oil S S S —

Copper Salts M M M —

Corn Oil S S S —

Cottonseed Oil S S S —

Cyclohexane M S S —

Cyclohexanol S S — —

Cyclohexanone M S — —

Decalin U S M —

Detergents S S S —

Diacetone S M U —

Dibutyl Sebacate S — — —

Dichlorobenzene p- — S — aka Moth Balls

Diethylene Glycol S M M —

Diethylketone S M U —

Dimethyl Formamide S M S —

Epichlorohydrin S M — —

INTRODUCTION

Solvent and chemical resistance refers to the ability of a fiber to

retain its important physical properties. The resistance of fibers to

chemicals depends not only on the type of fiber and the chemical,

but concentration, temperature, time, fiber diameter, stress, etc. The

following are general comments on solvent and chemical resistance,

followed by a more specific table.

MATERIAL INFORMATION

NYLON

Nylon has excellent resistance to most substances. It is however

attached by oxidizing agents, organic acids, mineral acids and

aromatic alcohols. Nylon has excellent resistance to hydrocarbons

(such as gasoline, kerosene and diesel fuel), oils, cleaning solutions

and alkalis. It will absorb small amounts of water, low molecular

weight alcohols (methyl, ethyl or isopropyl alcohols) and

chlorinated solvents and be plasticized to them.

POLYESTER

Polyester has excellent resistance to most substances. It is resistant to

acids, oxidizers such as hydrogen peroxide and most solvents.

Polyester has excellent resistance to hydrocarbon fuels, oils and

lubricants. It is however attacked by strong alkalis such as

concentrated solutions of sodium hydroxide (lye or caustic soda),

calcium hydroxide (lime, mortar), ammonia, trisodium phosphate or

sodium carbonate (washing soda, soda ash).

POLYPROPYLENE

Polypropylene offers excellent resistance to most water soluble

chemicals, including fairly strong acids or alkalis and simple

hydrocarbons. It may be attacked by oxidizing agents such as

hydrogen peroxide, chlorinated solvents such as

1,1,1-trichloroethane and aromatic solvents such as xylene, especially

at higher temperatures.

RATINGS

S: Satisfactory – The material should give good service life when

used with this chemical.

M: Marginal – Depending on temperature concentration,

exposure, expected life, etc. The material may or may not give

adequate performance. Specific testing for the application is

recommended, or contact us for further details.

U: Unsatisfactory – The material will deteriorate in hours to

weeks when used with this chemical.

Pré-visualização parcial do texto

Baixe GUIA DE SOLUBILIDADE e outras Notas de estudo em PDF para Cultura, somente na Docsity!

S O L V E N T & C H E M I C A L R E S I S T A N C E

I N F O R M A T I O N

REAGENT POLYPROPYLENE NYLON POLYESTER NOTES REAGENT POLYPROPYLENE NYLON POLYESTER NOTES

Acetaldehyde M M M — Acetic Acid 5% S M S Will etch Nylon Acetic Acid 10% S M S Acetic Acid 100% S U U Will dissolve Nylon Acetone S S M — Acetophenone S S — — Allyl Alcohol — S S — Aluminum Chloride S M S — Aluminum Sulfate S S S — Ammonia Solution S S S aka Ammonium Hydroxide Amyl Alcohol S S S — Amyl Acetate n- S S S — Amyle Chloride M — — — Anti-Freeze S S S — Aqua Regia S U U — Aromatic Hydrocarbons U S M — Barium Carbonate S S S — Benzaldehyde M S — — Benzene U S M — Benzoic Acid S S S — Benzyl Acetate M — — — Borax S S S — Boric Acid S S S — Brake Fluid — S S — Bromine Liquid M U U — Butanol S S S — Butter S S S — Butyl Acetate iso S S M — Butyl Acetate n- S S M — Butyl Alcohol iso S S S — Butyl Alcohol n- S S S — Butyl Phthalate S S S — Calcium Chloride S U S — Calcium Hypochlorite 15% S U S — Camphor U S — —

Carbon Tetrachloride U S S — Carbolic Acid 50% S U U aka Phenol/ Solvent for Nylon Carbolic Acid 100% S U U aka Phenol/ Solvent for Nylon Caster Oil S S S — Caustic Soda S M M aka Sodium Hydroxide Cellosolve S — — — Cellulose Acetate S S — — Cetyl Alcohol S S S — Chlorobenzene U S M — Chloroform U M M Temporarily softens Nylon Chlorine U U U — Chromic Acid S U M — Citric Acid 10% S M S — Citric Acid 20% S M S — Citrus Oil S S S — Cocoa Butter S S S — Cod Liver Oil S S S — Coconut Oil S S S — Copper Salts M M M — Corn Oil S S S — Cottonseed Oil S S S — Cyclohexane M S S — Cyclohexanol S S — — Cyclohexanone M S — — Decalin U S M — Detergents S S S — Diacetone S M U — Dibutyl Sebacate S — — — Dichlorobenzene p- — S — aka Moth Balls Diethylene Glycol S M M — Diethylketone S M U — Dimethyl Formamide S M S — Epichlorohydrin S M — —

INTRODUCTION

Solvent and chemical resistance refers to the ability of a fiber to retain its important physical properties. The resistance of fibers to chemicals depends not only on the type of fiber and the chemical, but concentration, temperature, time, fiber diameter, stress, etc. The following are general comments on solvent and chemical resistance, followed by a more specific table.

MATERIAL INFORMATION

NYLON

Nylon has excellent resistance to most substances. It is however attached by oxidizing agents, organic acids, mineral acids and aromatic alcohols. Nylon has excellent resistance to hydrocarbons (such as gasoline, kerosene and diesel fuel), oils, cleaning solutions and alkalis. It will absorb small amounts of water, low molecular weight alcohols (methyl, ethyl or isopropyl alcohols) and chlorinated solvents and be plasticized to them.

POLYESTER

Polyester has excellent resistance to most substances. It is resistant to acids, oxidizers such as hydrogen peroxide and most solvents. Polyester has excellent resistance to hydrocarbon fuels, oils and

lubricants. It is however attacked by strong alkalis such as concentrated solutions of sodium hydroxide (lye or caustic soda), calcium hydroxide (lime, mortar), ammonia, trisodium phosphate or sodium carbonate (washing soda, soda ash).

POLYPROPYLENE Polypropylene offers excellent resistance to most water soluble chemicals, including fairly strong acids or alkalis and simple hydrocarbons. It may be attacked by oxidizing agents such as hydrogen peroxide, chlorinated solvents such as 1,1,1-trichloroethane and aromatic solvents such as xylene, especially at higher temperatures.

RATINGS

S: Satisfactory – The material should give good service life when used with this chemical. M: Marginal – Depending on temperature concentration, exposure, expected life, etc. The material may or may not give adequate performance. Specific testing for the application is recommended, or contact us for further details. U: Unsatisfactory – The material will deteriorate in hours to weeks when used with this chemical.

makeworkeasier 141

S O L V E N T & C H E M I C A L R E S I S T A N C E

I N F O R M A T I O N

REAGENT POLYPROPYLENE NYLON POLYESTER NOTES REAGENT POLYPROPYLENE NYLON POLYESTER NOTES

Ether S S S — Ethyl Acetate M S M — Ethyl Alcohol 95% S S S Temporarily softens Nylon Ethyl Chloride (Gas & Liq.) M S — — Ethyl Ether S S S — Ethylene Lactate — M — — Ethylene Dichloride M S M — Ethylene Glycol S S S — Ethylene Oxide M M S — Ferrous Chloride S U S — Formaldehyde S S S — Formic Acid S U S Solvent for Nylon Furfuryl Alcohol M S S — Gasoline M S S — Glucose 30% S S S — Glycerin S M S — Heptyl Alcohol n- — M — — Hexane M S S — Hexyl Alcohol n- — M — — Hydrochloric Acid 10% S U S Dissolves Nylon Hydrochloric Acid 38% S U M Dissolves Nylon Hydrofluoric Acid S U U — Hydrogen Peroxide 3% S U S — Hyrogen Peroxide 30% M U S — Hydroquinone S U S — Iodine Tincture S U — — Isopropyl Alcohol S S M — Derosene M S S — Lactic Acid 10% S M S — Lanolin S S S — Lard S S S — Lauryl Alcohol S S S — Lemon Juice S M S — Lubricating Oil S S S — Lye S M M — Magnesium Carbonate S S S — Maleic Acid 10% S S S — Mercuric Chloride 5% S U — — Methyl Acetate M S M Temporarily softens Nylon Methyl Alcohol S S S Temporarily softens Nylon Methyl Chloride M — — — Methyl Ethyl Ketone M S M Softens Nylon Methyl Isobutyl Ketone M S U — Methyl Propyl Ketone M S U — Methyl Salicylate — — — aka Oil of Wintergreen Methylene Chloride M M U — Milk S S S — Mineral Oil M S S — Monochlorobenzene U S M — Motor Oil S S S — Nitric Acid M U M — Nonyl Alcohol S S S — Octyl Alcohol S S S — Oils-Essential M S S — Oils-Vegetable S S S — Oleic Acid 100% S S S — Orange Juice Fresh S S S — Orange Juice Conc. S S S — Oxalic Acid 10% S M S —

Ozone M M M — Paint Thinner M S S aka VM & P naphtha Palm Oil S S S — Palmitic Acid S S S — Peanut Oil S S S — Pectin S S S — Perchloroethylene U S — — Petroleum Distillate M S S — Petroleum Jelly S S S — Phenol 5% S U U Solvent for Nylon Phosphoric Acid 50% S U S — Potassium Hydroxide 30% S S U — Potassium Hydroxide 35% S S U — Potassium Hydroxide 50% S M U — Potassium Bromide S S S — Potassium Ferricyanide S S — — Potassium Iodide S — — — Potassium Permanganate M U S — Potassium Thiocyanate S U S — Propyl Alcohol iso- S M M — Propylene Glycol S S S — Resorcinol — U — Solvent for Nylon Salicylic Acid S S M — Silver Nitrate S S S — Sodium Acetate S S S — Sodium Benzoate S S S — Sodium Bicarbonate S S S — Sodium Bisulphite S S S — Sodium Borate S S S — Sodium Bromide S S S — Sodium Carbonate S S S — Sodium Chloride S S S — Sodium Dichromate 10% S M M — Sodium Hydroxide 40% S M U — Sodium Hypochlorite 5% M U M aka bleach Sodium Tetraborate S S M aka Borax Sodium Thiosulfate S S S aka Hypo Stannic Chloride S M — — Stearic Acid (pwd.) S S S — Stoddard Solvent M S S — Sucrose 30% S S S — Sulphuric Acid 2% S M S — Sulphuric Acid 50% S U U — Sulphuric Acid 96% S U U — Tannic Acid 2% S — S — Tartaric Acid S S S — Tea (sol.) S S S — Tetrahydrofuran S S S — Tetralin M S S — Thionyl Chloride — U — — Toluene M S M — Trichloroethylene (1,1,1) U S S Softens Nylon Trisodium Phosphate S S M — Triethylene Glycol S S S — Turpentine M S S — Water S S S — Water Carbonated S S S — Xylene M S M — Zinc Chloride S U S — Zinc Salts in solution S U S Cracks Nylon Zinc Stearate S S S —
